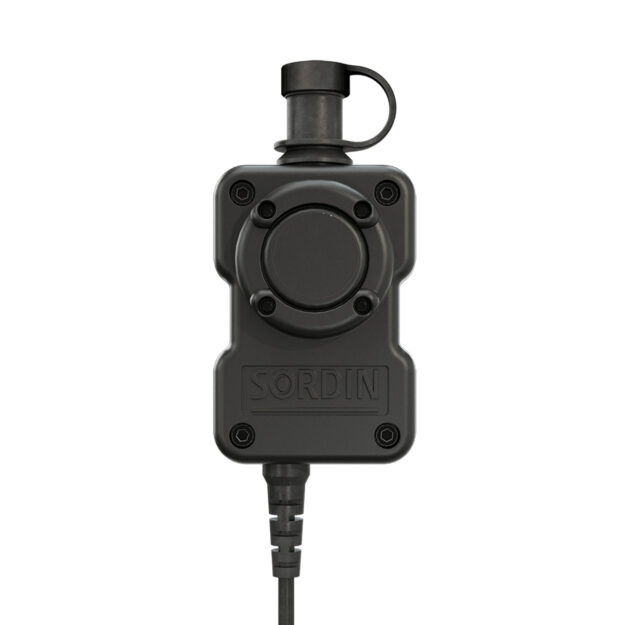

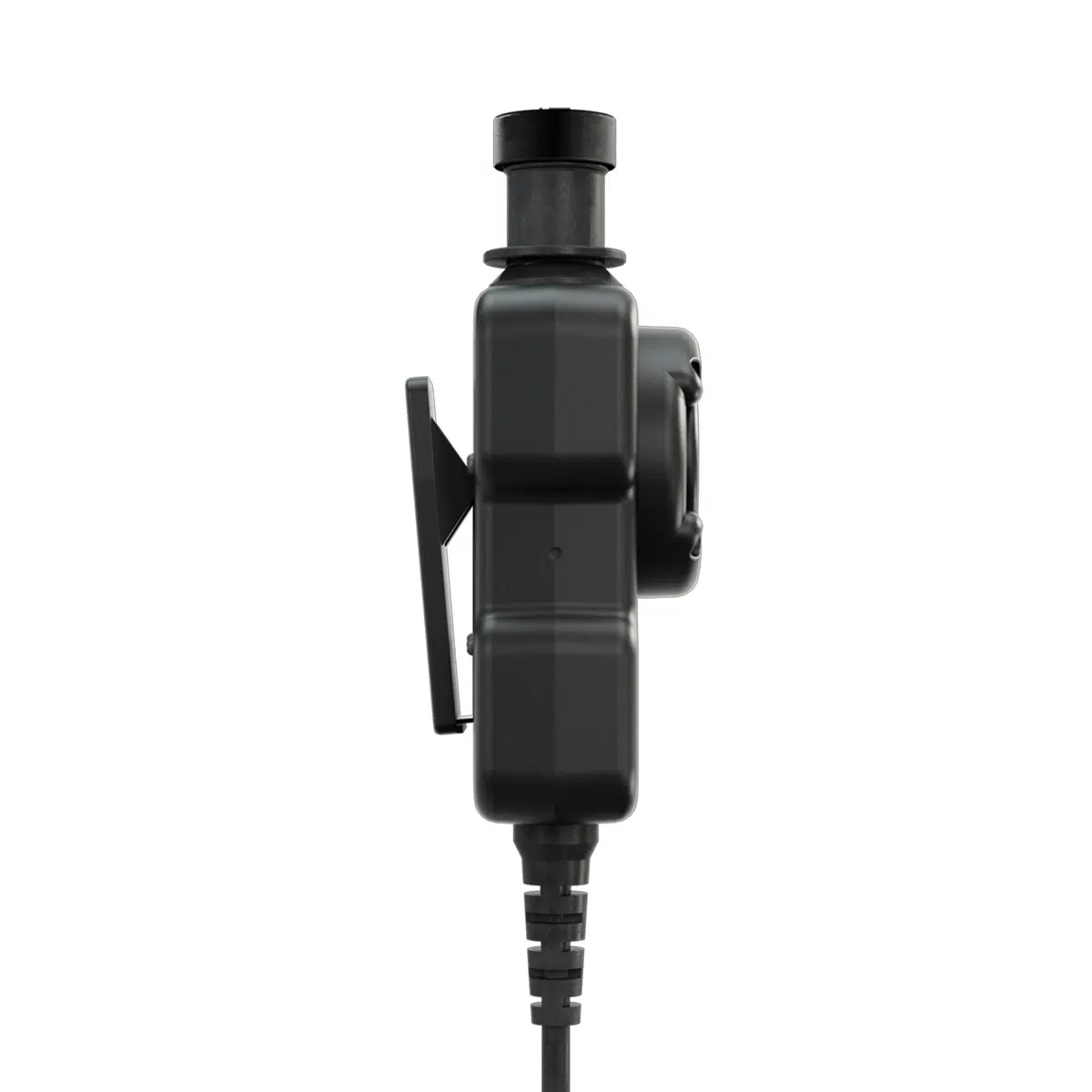

Sordin PTT Single Com Splash Proof
£275.00 (Ex. VAT)
A Single Com PTT system intended to be connected to one communication radio. It has a splash proof, black body with a large easy to locate push-to-talk button and a clip for attaching to clothing.
For HARRIS radios, contact us for pricing.
KEY FEATURES
- Simple single com PTT box to be used with one communication radio or mobile phone.
- Rugged design suitable for outdoor use in harsh weather conditions.
- Black body with a large, easy to locate PTT button.
- Complete assembly with headset connector, PTT Box, coiled downleads and radio interface.

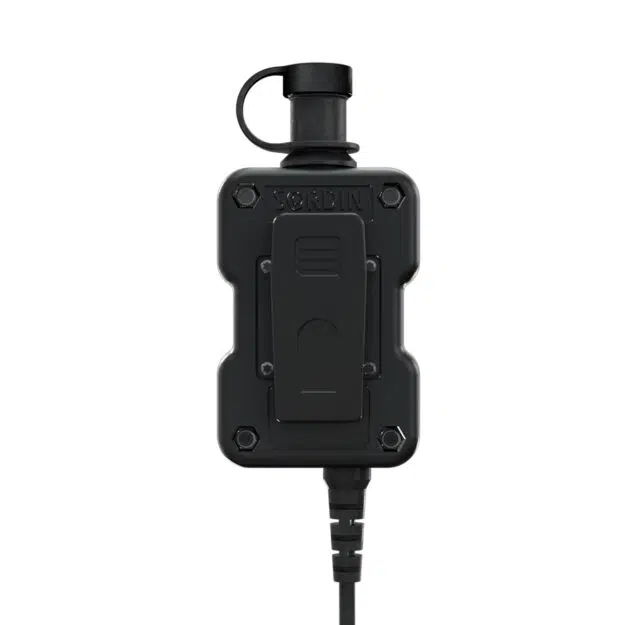

- Rotatable belt clip for attaching the PTT box to a belt or other fastening systems such as MOLLE (Modular Lightweight Load-carrying Equipment). The belt clip is removable.
- For use with Sordin communication headsets with male 4-pole ร7.2 mm connector (type TP-120) and compatible with various two-way radios.
- Can be used together with other headset brands with male 4-pole ร7.2 mm connector (type TP-120) and correct wiring (requires testing and verification).
- Button profile and tactile feedback suitable for gloved hands.
- Switch guard protects PTT button from unintentionally pressing the PTT button.
Connector to headset
Female 4-pole ร7.2 mm connector (type TJ-102)
Pin configuration for the connector to headset
Sordin wiring (US NATO)
Radio cable
Coiled, ร4 mm, L 600 mm to 1200 mm
Down lead:
Coiled, heavy duty down lead. Length may vary between different radio interface but the average relaxed length is 0.4 meter with a 90% maximum extension to 1.4 meter
Water resistance:
Splash proof for outdoor use in harsh weather conditionsย (Water proof versions will be available during 2022.)
Weight:
250 g (approx) - varies between different radio interfaces
Dimensions
120 x 63 x 52 mm
Operating and storage temperature
-20ยฐC to +50ยฐC, < 85% RH
Approvals
RoHS directive 2011/65/EU
AVAILABLEย COMMUNICATIONย RADIOย INTERFACES
โSordin supports most radio models in the market. For the latest update, click the link under Product Number above.
If your radio model is not listed or if you want a special configuration, contact us for a custom order.
